1. 재질 : 폴리아미드(PA)
2. 씰 : NBR
3. 오링 : NBR
4. IP등급 : IP66/67
5. 색상 : 회색, 진회색, 검정색
**규격 및 사양은 사전 예고 없이 변경될 수 있습니다.

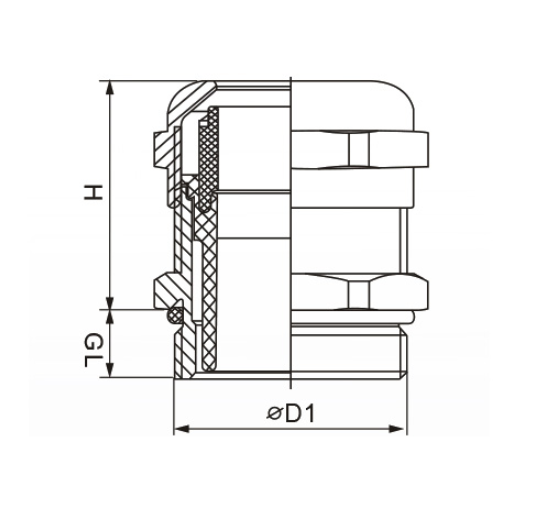

모델 및 규격
| 제품모델 |
규격 |
파일 |
| 회색 |
진회색 |
검정색 |
Thread |
Cable ø(mm) |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-PG7-G |
BC-PG7-D |
BC-PG7-B |
PG7 |
4~6.5 |
19 |
9 |
16 |
12.5 |
|
|
|
| BC-PG9-G |
BC-PG9-D |
BC-PG9-B |
PG9 |
4.5~8.5 |
24 |
9 |
19 |
15.2 |
|
|
|
| BC-PG11-G |
BC-PG11-D |
BC-PG11-B |
PG11 |
5~10 |
25 |
9 |
22 |
18.6 |
|
|
|
| BC-PG13.5-G |
BC-PG13.5-D |
BC-PG13.5-B |
PG13.5 |
6~11 |
27 |
10 |
24 |
20.4 |
|
|
|
| BC-PG16-G |
BC-PG16-D |
BC-PG16-B |
PG16 |
8~13 |
29 |
10 |
27 |
22.5 |
|
|
|
| BC-PG19-G |
BC-PG19-D |
BC-PG19-B |
PG19 |
12~15 |
30 |
10 |
28 |
24 |
|
|
|
| BC-PG21-G |
BC-PG21-D |
BC-PG21-B |
PG21 |
13~18 |
35 |
12 |
33 |
28.3 |
|
|
|
| BC-PG25-G |
BC-PG25-D |
BC-PG25-B |
PG25 |
16~21 |
33 |
12 |
35 |
30 |
|
|
|
| BC-PG29-G |
BC-PG29-D |
BC-PG29-B |
PG29 |
18~25 |
41 |
12 |
42 |
37 |
|
|
|
| BC-PG36-G |
BC-PG36-D |
BC-PG36-B |
PG36 |
23~32 |
47 |
15 |
52 |
47 |
|
|
|
| BC-PG42-G |
BC-PG42-D |
BC-PG42-B |
PG42 |
30~38 |
50 |
18 |
60 |
54 |
|
|
|
| BC-PG48-G |
BC-PG48-D |
BC-PG48-B |
PG48 |
37~44 |
54 |
18 |
68 |
59.3 |
|
|
|
| BC-PG63-G |
BC-PG63-D |
BC-PG63-B |
PG63 |
42~51 |
59 |
30 |
77 |
70 |
|
|
|
